Data Sources

A data source is BetweenRows' representation of an upstream PostgreSQL database. Before users can query through the proxy, you need to create a data source (connection details) and discover its catalog (which schemas, tables, and columns to expose).

Purpose and when to use

Create a data source whenever you have a PostgreSQL database you want to protect with BetweenRows policies. Each data source is independent — you can connect multiple upstream databases to a single BetweenRows instance, each with its own catalog, policies, and user access grants.

Field reference

Field	Type	Required	Default	Notes
name	string	Yes	—	The identifier users put in their connection string as the database name: psql postgresql://alice:secret@proxy:5434/<name>. Max 64 characters, alphanumeric + -_ only, must start with a letter. Renaming is a breaking change — see Rename Safety.
ds_type	enum	Yes	—	postgres (the only option at launch).
host	string	Yes	—	Upstream PostgreSQL hostname or IP.
port	integer	Yes	5432	Upstream PostgreSQL port.
database	string	Yes	—	Database name on the upstream server.
username	string	Yes	—	PostgreSQL user the proxy connects as. Use a read-only user with the broadest read permissions you want the proxy to expose.
password	string	Yes	—	Encrypted at rest using BR_ENCRYPTION_KEY (AES-256-GCM).
sslmode	enum	Yes	require	disable — no SSL; prefer — try SSL, fall back to plaintext; require — SSL required, connection fails without it. Use require for anything outside localhost.
access_mode	enum	No	policy_required	policy_required (default deny, explicit grant — the default) or open (default allow, explicit deny). Use policy_required for production — see Access modes below. Editable on both create and update via the API; the admin UI currently only exposes this field on the edit form.
is_active	boolean	Edit only	true	Deactivate a data source without deleting it. Deactivated data sources reject all proxy connections — users see "data source not found." Policies and catalog are preserved.

Upstream credentials scope

The credentials you enter are what the proxy uses for every query on this data source. If the upstream user can only see the public schema, BetweenRows can only discover and expose public — even admins in the UI cannot browse further.

Step-by-step: create a data source and discover the catalog

These steps use the demo schema as an example. Substitute your own database details.

1. Log in to the admin UI at http://localhost:5435.

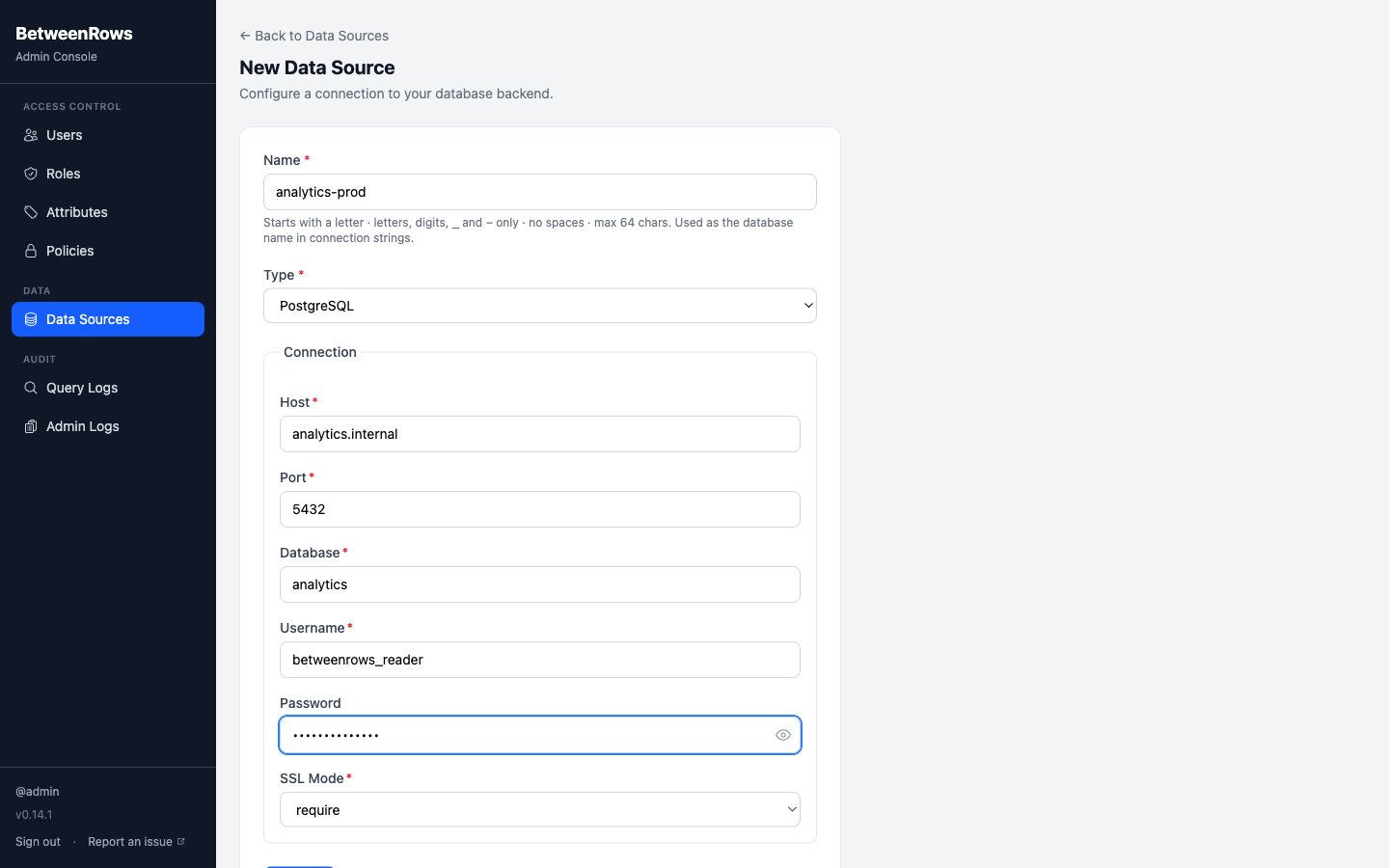

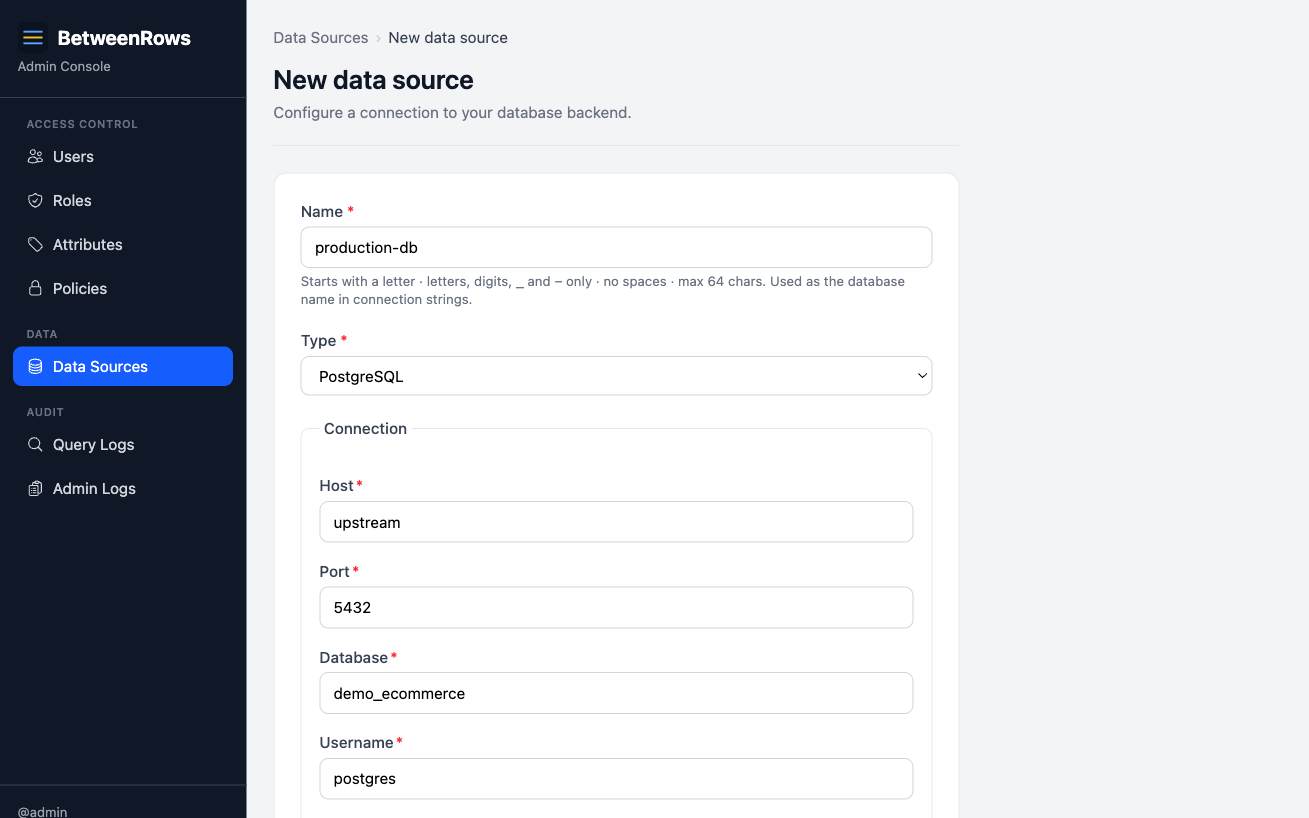

2. Go to Data Sources → Create. Fill in the connection details:

   Field	Demo value
   Name	demo_ecommerce
   Host	upstream (or 127.0.0.1 if running outside Docker)
   Port	5432
   Database	demo_ecommerce
   Username	postgres
   Password	postgres
   SSL mode	disable (local dev only)

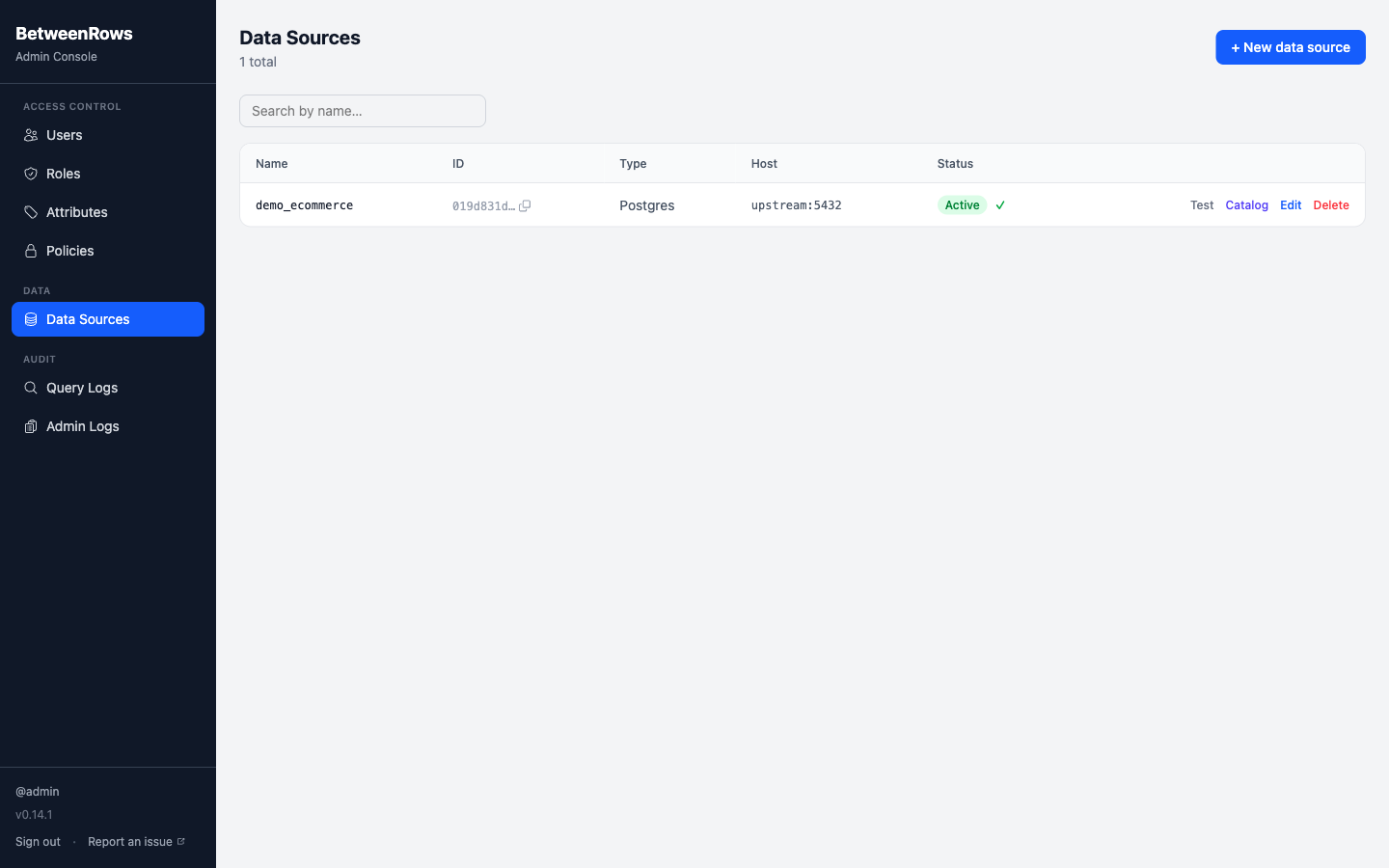

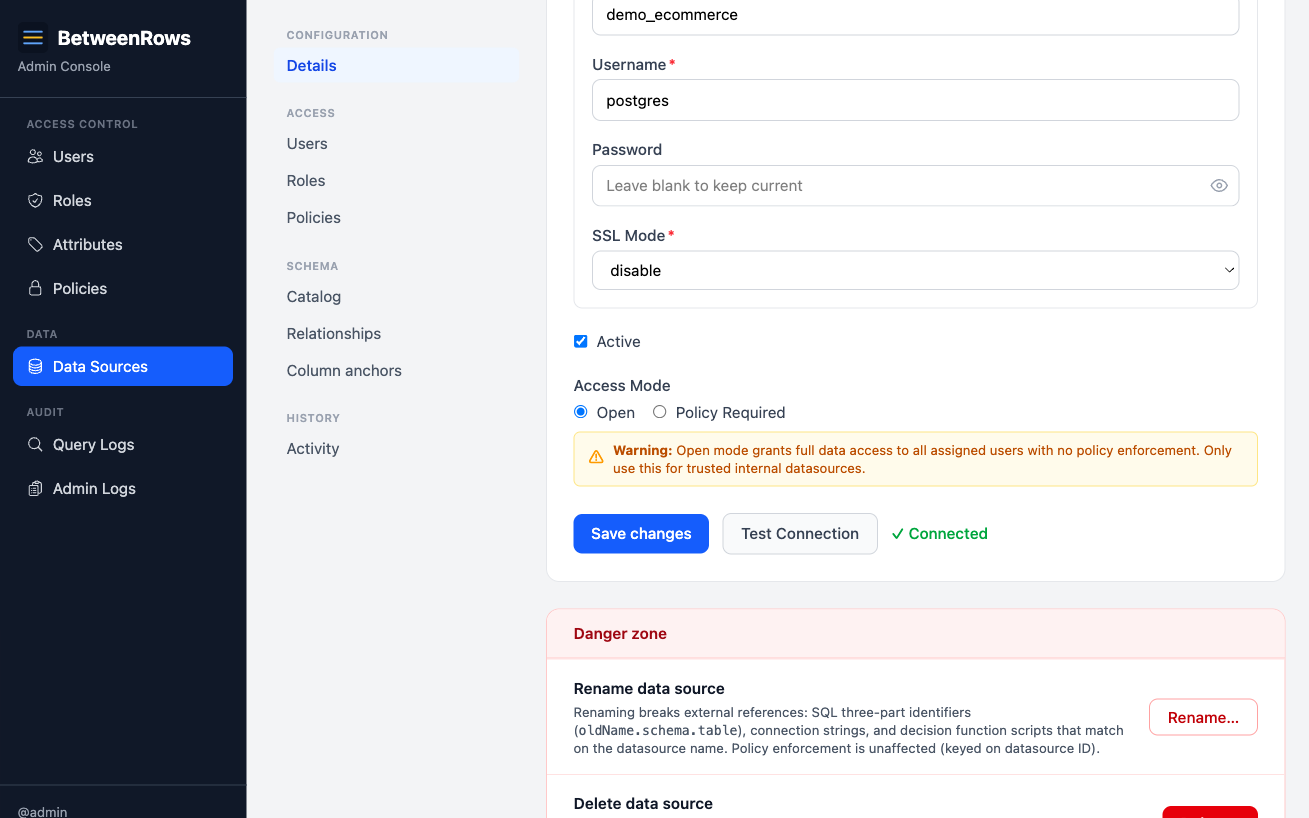

3. Click Test Connection. A green indicator confirms the proxy can reach the upstream. If it fails, check:

   • Host/port reachable from the BetweenRows container (not just your laptop)
   • Username/password correct for the upstream database
   • SSL mode matches the upstream's pg_hba.conf settings
   • Firewall/security group allows the connection



4. Save the data source.

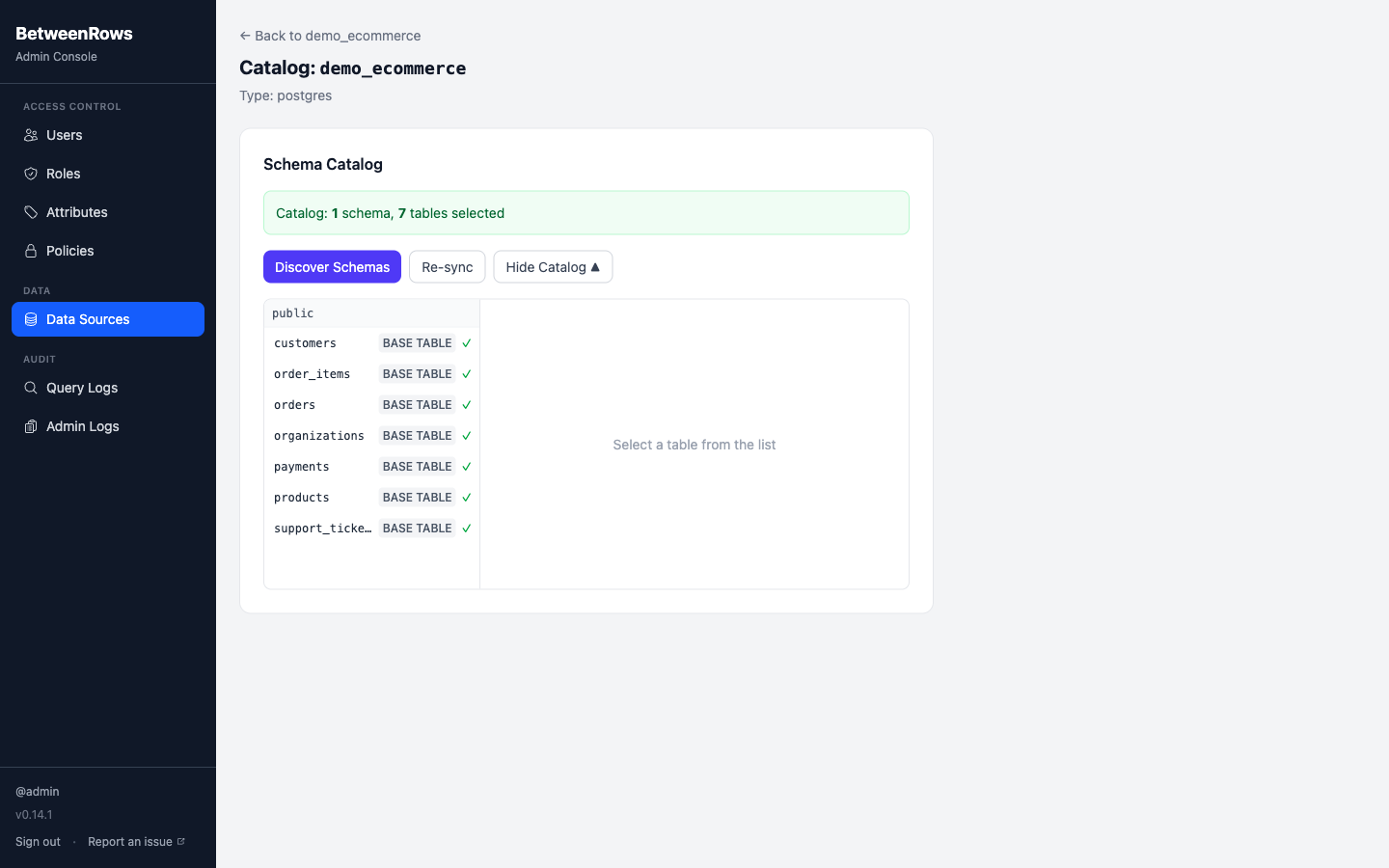

5. Discover the catalog. On the data source detail page, click Discover Catalog. A wizard walks through four steps:

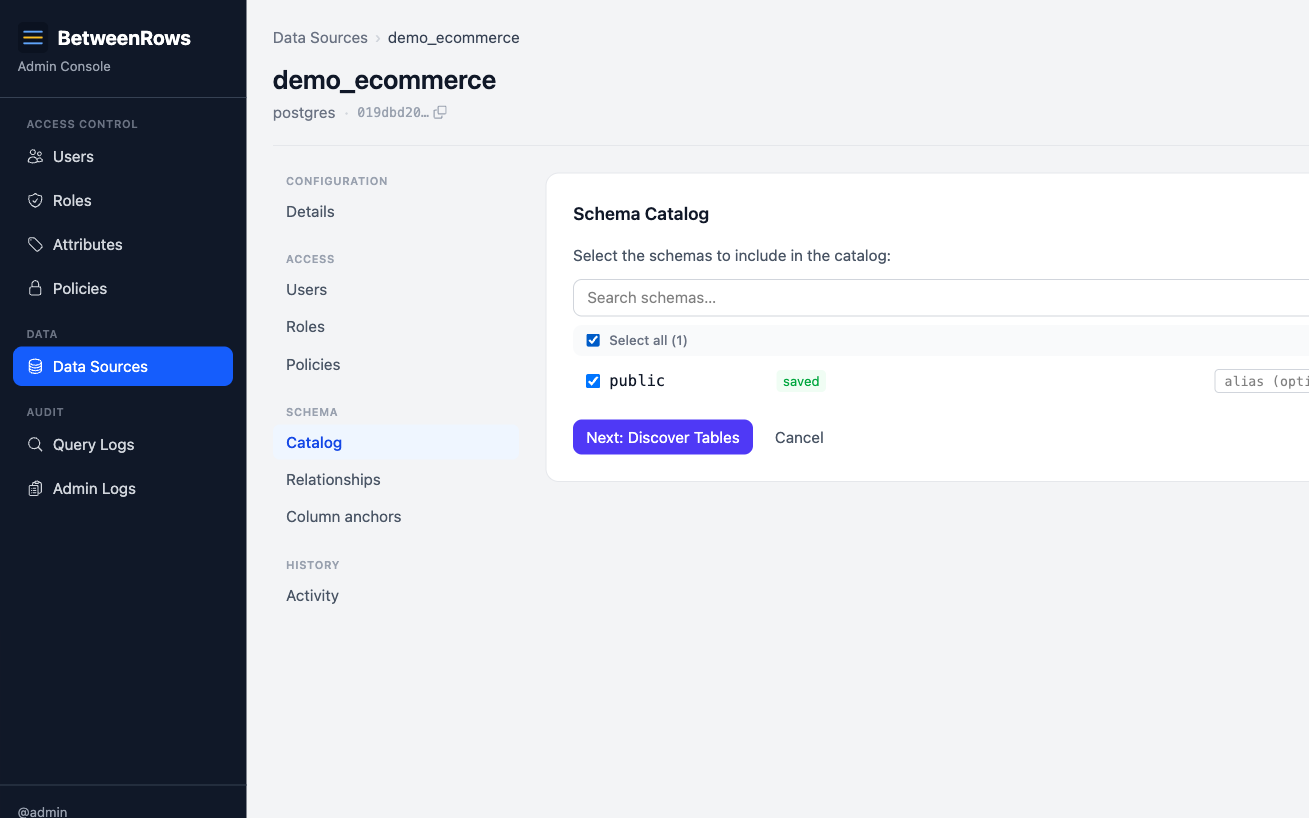

   • Schemas — BetweenRows queries information_schema.schemata. Select the schemas to expose. Exclude pg_catalog, information_schema, and ops schemas.
   • Tables — for each selected schema, select which tables and views to expose.

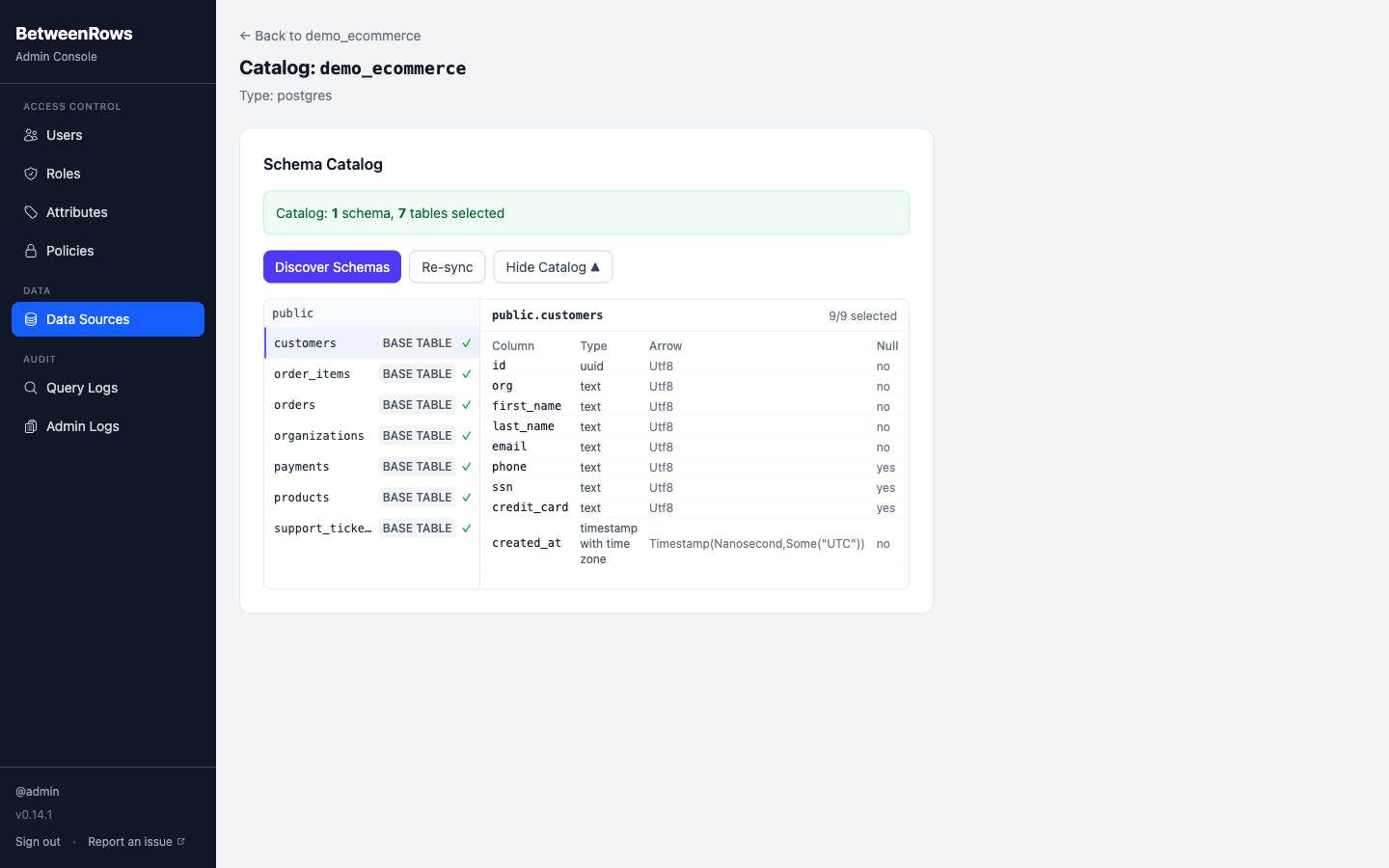

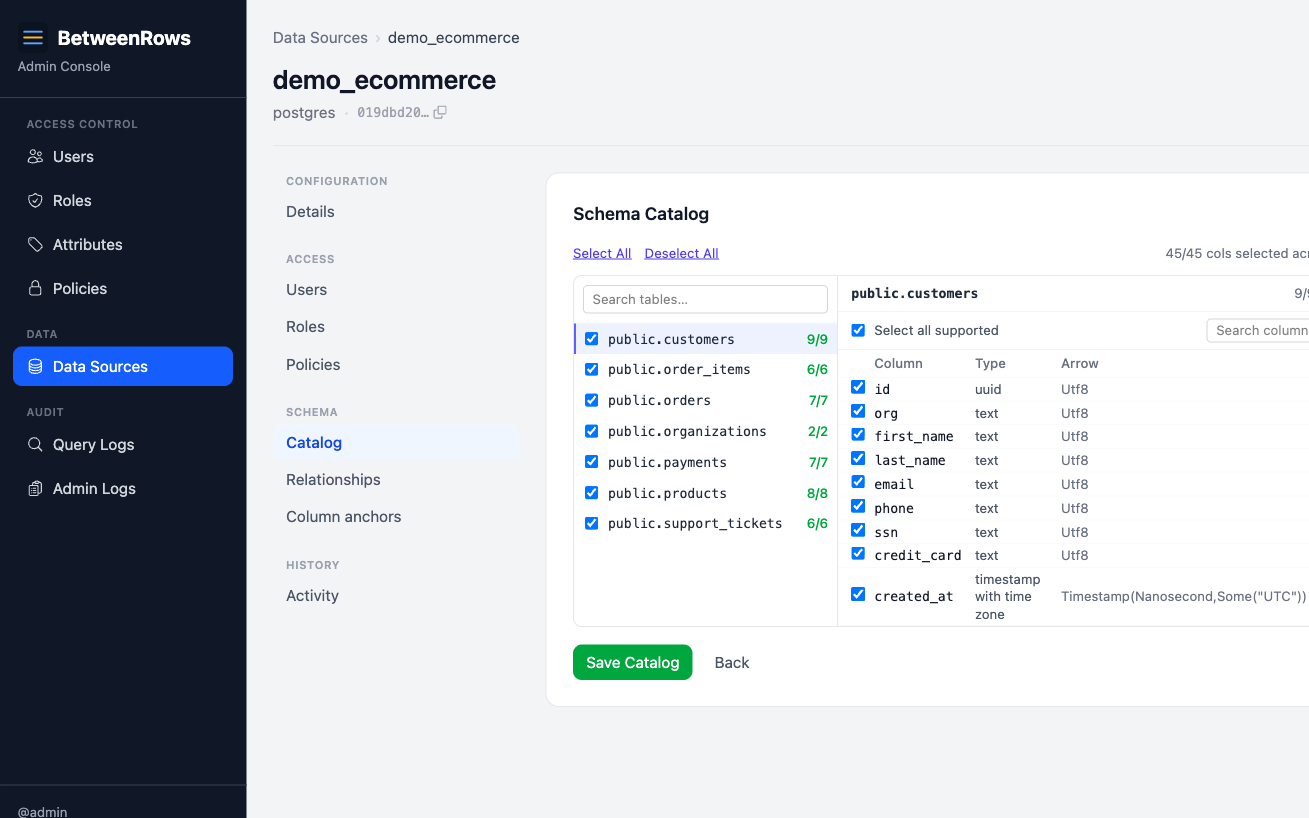

   • Columns — for each selected table, select which columns to expose. Deselect columns here as a first-pass data-minimization step.
   • Save — persist the selections as the baseline catalog.



6. Grant user access. On the data source page, add users or roles in the User Access section. Admin status does not grant data access — every user starts with zero data plane access.

→ Full demo schema: Demo Schema

Access modes

A data source's access mode determines what happens when no policy matches a table for a given user:

Mode	Tables with no matching column_allow	Recommendation
policy_required	Hidden from schema metadata, return empty results. A column_allow policy is required to make a table queryable. Default deny, explicit grant.	Production, staging, anything with real data.
open	Visible to any user with data source access. row_filter, column_mask, and deny policies still apply on top. Default allow, explicit deny.	Local dev, early prototyping, throwaway demos.

Both modes run the full policy engine — open does not disable policies. Deny policies (column_deny, table_deny) are enforced identically in both modes.

Switching from open to policy_required

If you flip from open to policy_required without first creating column_allow policies, all tables become invisible immediately. Create the allow policies first, then switch the mode.

→ Conceptual explanation: Policy Model → Access modes

Patterns and recipes

Multiple data sources, one proxy

Create separate data sources for each upstream database. Users connect with different database names in their connection string:

psql postgresql://alice:secret@proxy:5434/production_db
psql postgresql://alice:secret@proxy:5434/analytics_db

Policies are assigned per data source — a row filter on production_db does not affect analytics_db.

Read-only upstream user

Give the proxy a dedicated read-only PostgreSQL role:

CREATE ROLE betweenrows_reader LOGIN PASSWORD 'strong-password';
GRANT CONNECT ON DATABASE mydb TO betweenrows_reader;
GRANT USAGE ON SCHEMA public TO betweenrows_reader;
GRANT SELECT ON ALL TABLES IN SCHEMA public TO betweenrows_reader;
ALTER DEFAULT PRIVILEGES IN SCHEMA public GRANT SELECT ON TABLES TO betweenrows_reader;

This limits the blast radius if BetweenRows credentials are compromised — the upstream user can only read, never write.

Deactivating vs. deleting

• Deactivate (is_active = false): proxy rejects connections to this data source. Policies, catalog, and access grants are preserved. Reactivate anytime.
• Delete: permanently removes the data source and cascades to all associated catalog entries, policy assignments, and access grants. This is irreversible.

Use deactivation for maintenance windows; use deletion only when removing a data source permanently.

Composition with other features

• Catalog defines the universe of what exists from the proxy's perspective. Policies narrow that universe per user.
• column_allow grants visibility to specific columns within the catalog (only matters in policy_required mode).
• column_deny / table_deny removes things from the catalog per user, regardless of access mode.
• column_mask transforms values at query time; the column must be in the catalog.
• row_filter restricts rows; the table must be in the catalog.

Think of the catalog as "what can potentially exist" and policies as "what each user actually sees."

Limitations and catches

• table_deny targets use the upstream schema name, not any alias. If the upstream schema is public and you create a table_deny targeting a different name, it silently fails. Always use the schema name as shown in the catalog discovery.
• Catalog re-discovery applies on the next connection. Existing sessions keep seeing the old schema until they reconnect.
• Catalog drift is intentional. When the upstream adds a new table or column, it is not automatically exposed. You must run Sync Catalog and explicitly select the new items. This is deliberate data-minimization — schema changes upstream never widen the attack surface without an admin's action.
• New items default to not-selected during sync — you must opt them in.
• Renaming a data source is a breaking change for connection strings, stored SQL, BI tools, and decision functions that reference the name. Policies continue to work (they reference by ID, not name). See Rename Safety.

→ Full list: Known Limitations

Troubleshooting

• Test Connection fails — check host/port reachability from inside the BetweenRows container, upstream credentials, SSL mode, and firewall rules. See Troubleshooting → Data source issues.
• No tables after discovery — the upstream user may lack SELECT permission on information_schema.tables or the selected schema.
• Users see empty results — in policy_required mode, check that a column_allow policy exists and is assigned. In open mode, check for table_deny or row_filter policies that might filter everything.
• Connection string rejected — the database name in the connection string must match the data source name exactly (case-sensitive).

→ Full diagnostics: Troubleshooting · Audit & Debugging

See also

• Configuration — BR_ENCRYPTION_KEY and other env vars
• Policies overview — which policy types to layer on top of the data source
• Rename Safety — what breaks when you rename
